Computing and Cooling Where you Need them!

Our Edge-ready, plug-and-play, datacenter-in-a-box solution delivers unprecedented high density and efficient infrastructure anywhere. Be it a warehouse, office building, in the heart of a city or in a remote area with harsh-climate conditions and far from the grid, the MicroPod will be fit for the job.













The benefits of the MicroPod

  • Low energy footprint

  • Save 25-40% on TCO

  • 6 kW of compute density in a compact space

  • Reduce latency and increase speed deployment

  • +30% in HW life-span

  • -60% in HW failure rate

  • Save 50% on CAPEX building costs

  • Save 95% on cooling OPEX

  • Zero water consumption

  • Re-use of heat

Submer MicroPod

MicroPod

Technical specs

Heat dissipation capacity (kW)Outdoor configuration: 5000 W (in direct sunlight)
Indoor configuration: 6600 W
IT gear capacity (U, OU) 19 inch / 6U , 600 mm max depth
Dimensions, L x W x H (cm, in) 130 (L) x 65 (W) x 90 (H) cm
51.18 (L) x 25.59 (W) x 35.43 (H) in
Maximum height with lid open:
155 (H) cm 61.02 (H) in
SmartCoolant capacity (l, gal) 96 l / 25.3 gal
Weight, empty (kg, lb) approx 227kg / 500 lb
Weight, full of SmartCoolant weight (kg, lb) approx 303 kg / 669 lb
Weight, full of Servers (kg, lb)approx 340 kg / 749 lb
Footprint, L x W (m2, f2) 0.845 m2 / 9.1 f2
Power supply options (CE) 380-400 V 50 Hz / (UL) 208-230 V 60 Hz
Power supply connection options (CE) Industrial connector three phase 3P+E+N 16A IEC 60309
(UL) 20A NEMA plug L2120
Water RequirementNone
CommunicationsMultiple options for integrated pass-through patch panel and cable management / Ethernet port
Backup PowerMultiple options for integrated Battery Backup Units with up 40min active critical power
Ambient air temperature range, recommended less or equal to (°C, °F)0°C - 50°C, 32°F - 122°F
Works under direct solar loadYes

Case Studies

Telecommunications Telecommunications

  • Problems: How to place high density compute at the edge.
  • Solution: MicroPod based on x86 High density compute.
  • Advantages: Enable better services for next generation Telecommunications & reduce heat challenges on the infrastructure.

Smart Transportation Smart Transportation

  • Problems: How to replace old compute & build an intelligent compute system at the Edge, to provide new services to be delivered.
  • Solution: MicroPod based on x86 High density compute.
  • Advantages: Reduce the operating costs & increase the Service revenue to the new platform.

Emergency Service Emergency Service

  • Problems: Rapid deployment of Emergency Service infrastructure in unknown or harsh environments.
  • Solution: MicroPod based on x86 Hardware with ruggedised casing.
  • Advantages: Rapid Plug & Play and Lift-and-shift capability.

SmartBuildings SmartBuildings

  • Problems: How to reduce latency & build highly-dense compute platforms for new services at the Edge in such locations.
  • Solution: MicroPod based on x86 Hardware & AI based software.
  • Advantages: Enable greater efficiency, new services & reduces support & maintenance costs.

Office systems Office systems

  • Problems: Provide a small, efficient compute service, noise free, environmentally friendly to enable multiple new services per office location.
  • Solution: MicroPod based on x86 Hardware & various based software.
  • Advantages: Enable greater efficiency and sustainability, new services & reduce maintenance costs. It also enables adoption of Immersion Cooling benefits. .

Immersion Cooling at the Edge

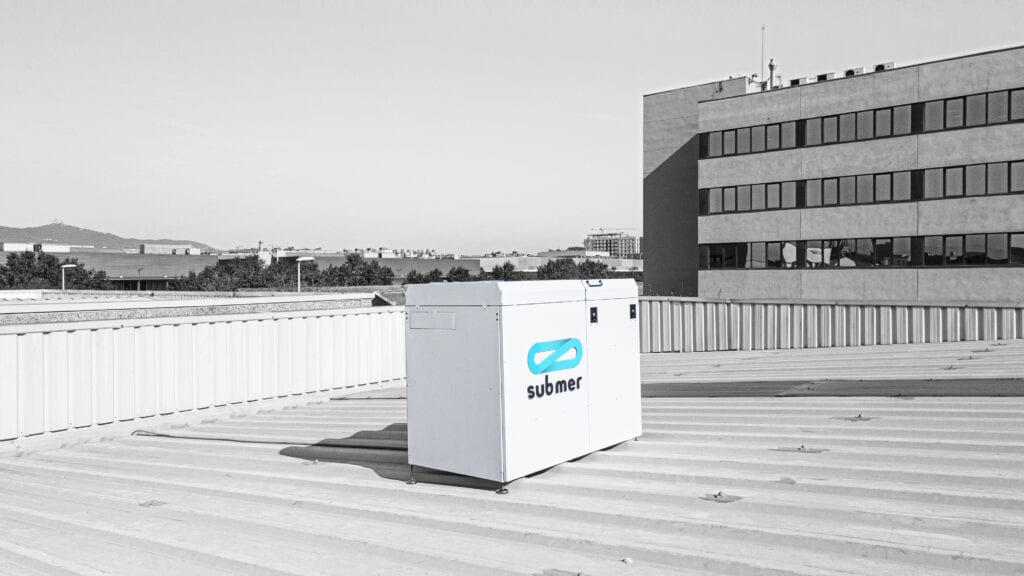

Submer’s MicroPod is the perfect Immersion Cooling solution for Edge applications, colocation datacenters, telcos and cloud computing. Thanks to its compact, modular, plug-and-play, datacenter-in-a-box configuration, the MicroPod allows for fast deployment in any location, including direct sunlight and an easy plug-and-play installation with an unrivalled energy footprint anywhere on the globe.

Submer Services

  • Facility Analysis

  • Design & Planning

  • Deployment & Activation

  • Certified Immersion Hardware

  • All Necessary Certifications

  • Preventive and Corrective Maintenance

  • Control and Warranties

  • Partnership and Friendship along the way (this is for free)

Get in touch with us!

Ask questions, tell us more about your upcoming datacenter/HPC or Hyperscale project. We're here to help.
